Zones

Create

Zones (aka domains) can be managed from the Zones menu item. From there you can add, edit, delete, and reload zones depending on your user permissions. Creating forward and reverse zones have many options to consider.

Domain Name

Required

A valid RFC-compliant zone name. It does not need to be compliant if it's going to be a template. Reverse zones can be entered by either their subnet value (192.168.1) or by their arpa value (1.168.192.in-addr.arpa). You can also delegate reverse zones by specifying the classless IP range in the zone name (1-128.168.192.in-addr.arpa).

Template

Optional

The template the zone will be based on. See Templates.

Views

Default: All Views

The view(s) the zone should be a loaded for.

Zone Map

Required

Forward or Reverse and this is typically automatically selected based on the page view.

Zone Type

Default: Primary

The type of zone (primary, secondary, stub, forward, url-redirect).

Note

url-redirect zone types is only a nomenclature in fmDNS. When the zone is defined with this type, a special URL resource record is created that fmDNS will automatically build a web redirect to this URL. To use this zone type, URL RR Web Servers must be defined in the Settings.

Clone Of

Optional

Create the new zone as a clone of another existing zone. See Clones.

DNS Servers

Default: All Servers

Choose which DNS servers and/or groups to build the zone on.

Domain TTL

Optional

Set the TTL on the zone if it should differ from the SOA. This is particularly used when the zone utilizes a SOA template.

Zone Transfer Key

Optional

Choose a TSIG key for transfering this zone if it should differ from the View.

SOA

Default: Custom or the default SOA template

Choose which SOA template to associate with the zone or select 'Custom' to manually enter a new SOA.

Comment

Optional

Make notes about the zone.

Support Dynamic Updates

Optional

This option allows zone record changes to be made on the DNS server itself (such as through nsupdate). When enabled, fmDNS will compare the zone file from the DNS server with that in the database and make any necessary changes. This option will increase processing time while reloading zones.

Enable DNSSEC

Optional

This option enables zones to support DNSSEC signing. You must create the KSK and ZSK before zones will be signed (offline and inline signing are supported). During a configuration build or zone reload, the ZSK and KSK files will stored on the name servers in the directory defined by the most specific key-directory option defined (global, view, zone, server-override, etc.). This option will increase processing time while reloading zones.

Create Template

Optional

Create a zone template from this zone. See Templates.

The Zone Management or Super Admin permission is required to add, edit, and delete zones and templates.

Options

You can access the individual zone options by clicking on the "Configure Additional Options" link in the zone edit form or by clicking on the zone options icon next to the zone name:

From there you can configure options supported by the zone block.

Groups

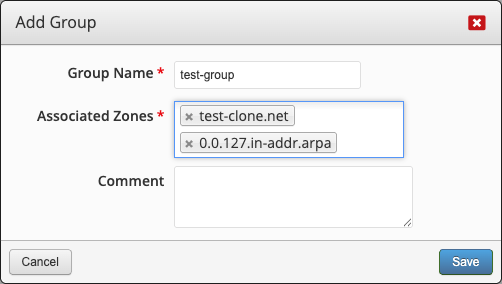

Zone groups allow you to group specific zones together for the purpose of restricting user access to specific zones. Instead of listing individual zones a user is restricted access to, you can specify a zone group for easier management.

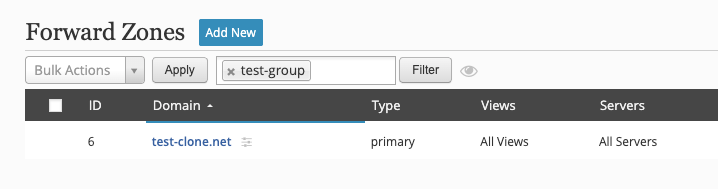

In addition, zone groups can be used to filter the zones listing.

Templates

Zones can be saved as a template and applied to an unlimited number of zones. See Templates for more information.

Clones

You can define a zone as a clone of another previously defined primary zone. The cloned zone will contain all of the same records present in the parent zone. This is useful if you have multiple zones with identical records as you won't have to repeat the record definitions. Clones can also be handy if you want some records to resolve differently in a split-view scenario.

Simply click on the Clone this zone icon and create the zone as normal.

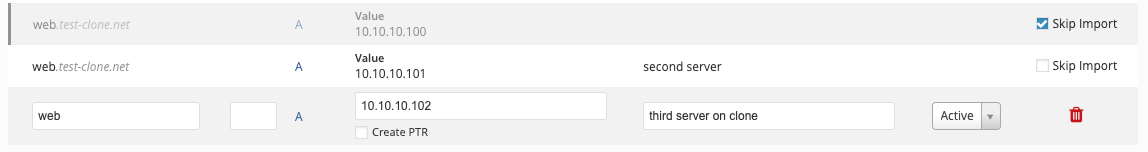

When you edit the records for a cloned zone, you have the Skip Import option on each record that comes from the parent. When skipped, the particular record will not be loaded in the cloned zone on the DNS servers. You can also define new records inside cloned zones for those that are slightly different than the parent.

===========================================================================
/master/db.test-domain.com.hosts:
===========================================================================
 1 ; This file was built using fmDNS 7.1.1 on Tue, 29 Apr 2025 19:29:14 +0000 UTC
 2
 3 $TTL 1d
 4 test-domain.com. IN SOA ns1.test-domain.com. root.test-domain.com. (
 5      2025042401  ; Serial
 6      2h      ; Refresh
 7      1h      ; Retry
 8      2w      ; Expire
 9      1d )        ; Negative caching of TTL
10
11 ; Name servers
12 test-domain.com.               IN   NS   ns1.test-domain.com.
13
14 ; Host addresses
15 ns1                            IN   A   192.168.1.5
16 web.test-domain.com.           IN   A   10.10.10.100
17 web.test-domain.com.           IN   A   10.10.10.101 ; second server
18
19

===========================================================================
/master/db.test-clone.net.hosts:
===========================================================================
 1 ; This file was built using fmDNS 7.1.1 on Tue, 29 Apr 2025 19:29:14 +0000 UTC
 2
 3 $TTL 1d
 4 test-clone.net. IN SOA ns1.test-clone.net. root.test-clone.net. (
 5      2025042900  ; Serial
 6      2h      ; Refresh
 7      1h      ; Retry
 8      2w      ; Expire
 9      1d )        ; Negative caching of TTL
10
11 ; Name servers
12 test-clone.net.                IN   NS   ns1.test-clone.net.
13
14 ; Host addresses
15 ns1                            IN   A   192.168.1.5
16 web.test-clone.net.            IN   A   10.10.10.101 ; second server
17 web                            IN   A   10.10.10.102 ; third server on clone
18
19

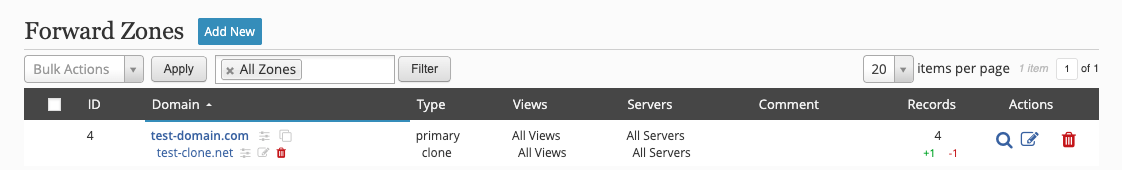

Instead of showing the total number of records in the cloned zone, the zones page will show the total additions and subtractions relative to the parent zone.

Note

Cloned zones will use the SOA from its parent zone except it will have its own Serial.

Reload

After a zone has been successfully built on the associated DNS servers, they can be reloaded going forward. When one or more resource records have been added or modified, that zone gets flagged for reload. There are four ways to reload a zone:

Reload link

Click on the reload link at the top of the zone's records page.

Reload icon

Click on the reload icon in the zone actions column.

Bulk action

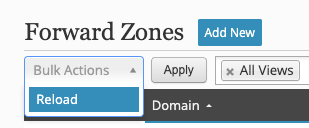

Tick the box for each zone you want to reload and select Reload from the Bulk Actions menu and then click Apply.

Process all updates

Click the Process all updates icon in the upper right.

Warning

This will process all available updates for all servers and zones.

The Reload Zone or Super Admin permission is required for reloading zones.

Import

You can import BIND-compatible zone dump files instead of adding zones and records individually. Go to Admin → Tools and use the Import Zone Files utility. Select your dump file and click 'Import Zones' which will import any views, zones, and records listed in the file.
